Winch Operated Truck Jib Crane, 1000 lbs. (0.5 tons) Capacity, 97" Max. Clearance | SupplyWave.ca

Close

Actual product may differ from what is pictured.

VESTIL

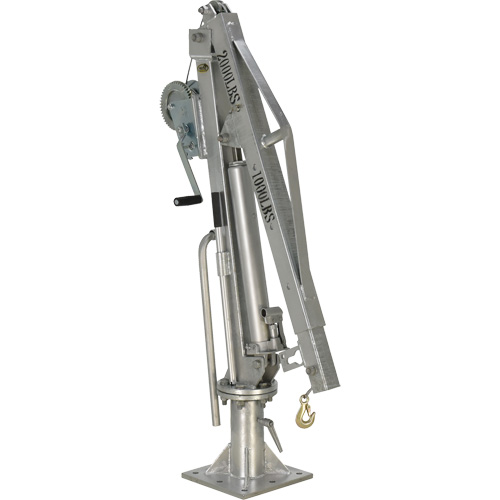

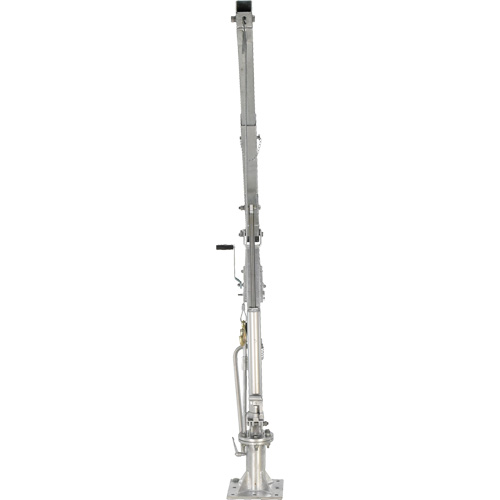

Winch Operated Truck Jib Crane, 1000 lbs. (0.5 tons) Capacity, 97" Max. Clearance

SKU: WTJ-4-G Model: LU497

C$ 1,820.68

Sold as: Each

In Stock

Qty

Add to Cart

Free shipping on orders over $149*. View Details

Product Details

Model	LU497
Manufacturer Model No	WTJ-4-G
Sold as	Each
Description	Lift items from ground to truck bed height Install in pick up truck beds Telescopic boom design with manual hydraulic hand pump to pivot boom up and down Manual cable winch to lift and lower loads Friction brake winch locks automatically when operator turns the handle counter clockwise to lower load Cable usage length: 24' Unit comes with one fixed hook, one chain slot lock, and one cable hook with latch Mounting plate is 10-5/8" by 10-5/8" Base height is 10" Overall height is 56" Crane swivels on a 360° base Welded steel construction Cable diameter: 3/16" Overall Cable Length: 32'
Specification	Capacity: 1000 lbs. (0.5 tons) Max. Lift Clearance: 97" Boom Extended Capacity: 1000 lbs. Chain Material: Steel Boom Retracted Capacity: 2000 lbs. Cable Winch Capacity: 500 lbs. Boom Extended Reach: 52" Boom Retracted Reach: 31" Extended Lift Range: 0 - 97" Retracted Lift Range: 13-1/2" - 86" Finish: Galvanized Weight: 218 lbs.
